MP 80FD Extrusion Molding Machine for Four Layers Powered by Siemens Motor

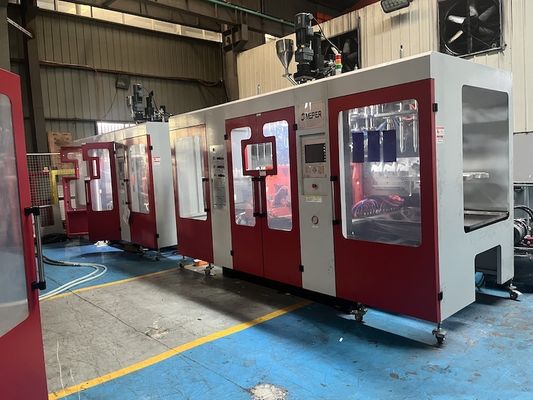

Grote Afbeelding : MP 80FD Extrusion Molding Machine for Four Layers Powered by Siemens Motor

Productdetails:

Merknaam:	MEPER
Certificering:	CE/ISO9001:2008
Model Number:	80FD

Betalen & Verzenden Algemene voorwaarden:

Minimum Order Quantity:	1 Set
Prijs:	negotiable
Packaging Details:	Standard Packaging
Delivery Time:	25-35 Work Days
Betalingscondities:	L/C, T/T
Supply Ability:	100 Sets Per Month

Contact

Gedetailleerde productomschrijving

Plaat slag:	540m M	Aantal hoofden:	1,2,3,4SET
Uitvoer van HDPE:	85kg/u	Materiaal:	Plastic
Trefwoord:	hdpe-flesblazers	MOTOR:	Siemens
Aanraakscherm:	Siemens	Klemkracht:	120KN
Markeren:	four layer extrusion molding machine , Siemens motor extrusion molding machine , MP 80FD extrusion molding machine

MP 80FD Extrusion Molding Machine for Four Layers Powered by Siemens Motor

Product Description

The MP 80FD Extrusion Blow Molding Machine is engineered for manufacturing high-quality hollow plastic products. The process begins with melting plastic resins including HDPE, LDPE, PP, or PVC, then extruding the material into a parison (tubular shape).

The machine then closes a mold around the parison and injects air to expand the plastic to the mold's shape. After cooling, the finished hollow product is ejected, ready for use or further processing.

Key Features

Accommodates hollow products of all sizes - large, medium, or small

Versatile compatibility with various plastic materials

Produces thick-walled containers for enhanced durability

Supports single-layer and multi-layer production (up to six layers)

High durability for stable, continuous production runs

Available in single-station or double-station configurations

Technical Specifications

80FDE-4S(100) Specifications
Material	PE
Max Container Capacity	500ML
Number of Die	4 sets
Machine Dimension (LxWxH)	3.82x4x2.5 m
Total Weight	8.6 tons

Clamping Unit
Clamping Force	120 kN
Platen Opening	240-600 mm
Toggle Stroke	540 mm
Max Mould Size (WxH)	480x500 mm

Extruder Unit
Screw Diameter	75 mm
Screw L/D Ratio	24 L/D
Plasticizing Capacity (HDPE)	85 Kg/h
Screw Heating Zone	3 zones
Screw Heating Power	15.3 kW
Fan Power	0.14 kW
Extruder Motor Power	22 kW

Energy Consumption
Total Power of Machine	72 kW
Power of Oil Pump Motor	15 kW
Air Pressure	0.6-0.8 Mpa
Consumption Compression Air	1.5 m3/min
Consumption Cooling Water	0.4 m3/min

Applications

The MP 80FD Extrusion Molding Machine is ideal for producing:

HDPE bottles for household products (detergents, shampoos, yogurt)

Containers for motor oil and lubricants

Chemical and pesticide storage bottles

Large jerry cans (5-30 liters capacity)

Water tanks and fuel tanks

Toys and hollow plastic objects (balls, floats, cones)

Frequently Asked Questions

Q1: What is the brand and model number of this extrusion molding machine?

A1: Manufactured by MEPER, model number 80FD.

Q2: Does this machine have any certifications?

A2: Certified with CE and ISO9001:2008 standards.

Q3: What is the minimum order quantity for this machine?

A3: Minimum order quantity is 1 set.

Q4: What are the payment terms available?

A4: Payment options include L/C (Letter of Credit) and T/T (Telegraphic Transfer).

Q5: What is the delivery time after placing an order?

A5: Typically 25-35 work days.

Q6: What is the supply capacity?

A6: Up to 100 sets per month.

Q7: How is the machine packaged for shipment?

A7: Shipped using standard protective packaging.

Q8: Is the price negotiable?

A8: Price is negotiable based on order details and quantity.
